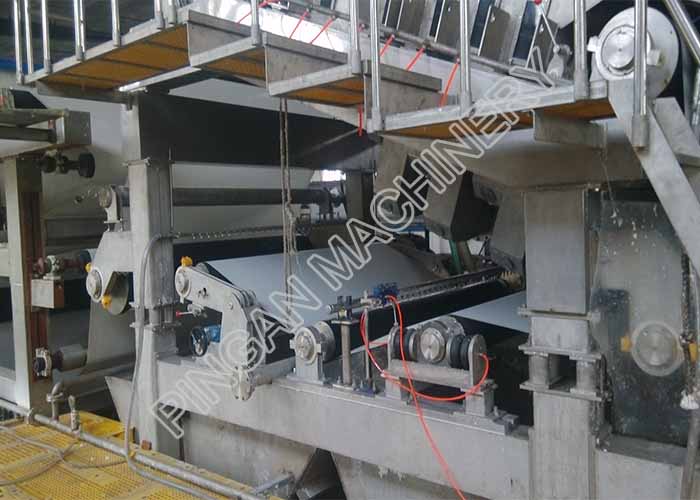

Paper sheets making machine produce high quality flat paper sheets 70T/day

Tensioner and corrector

Tensioner and corrector are necessary parts for this paper sheets making machine. Tensioners controls and adjusts the wire tension, to make the wire at the best performance station to get high quality and uniform wet paper sheets. Corrector controls the wire running direction and postion, and avoid deviation.

So without tensioner and corrector, the paper sheets making machine cannot get qualified paper.

Tensioner:

Electric wire tensioner consists of electric motor, worm gear reducer, stainless steel screw rod, bearing house, joining rod (304) etc. It drives the worm and gear directly by electric motor, transmits two side screw by transmission shaft, make bearing house move up and down to tension or loose. (1set of them are constant tension). Cover 1.5mm thick 304 stainless steel.

Corrector:

Pneumatic air bag corrector. Displacement±60-80mm. Corrector mainly consists of bearing house, base plate, press cover and bracket. The bracket will be moved when pressure is imbalance. And the guide roll will move at the same time to correct wire. Control mechanism: Mainly consists of pressure reducing valve, atomized lubricator, baffle plate, valve rod, special control valve, and bracket etc.

Qinyang PingAn Light Industry Machinery Co., Ltd is one of the member companies of China paper making machinery association. We are a large paper making equipment enterprise integrating technology research & development, design, manufacturing, and marketing services.

Founded in 1985, the company established a large-scale standardized joint-stock enterprise according to the modern enterprise mechanism in 2006, and now has 178 employees, including 24 engineers and technicians, and 8 senior engineers from Xi'an Walmet. Our company is located in Li Village Industrial Zone, Qinyang City, Henan Province, China, covering an area of 6000m², and has 1 R&D department, 8 modern manufacturing workshops, 1 quality inspection center and has more than 50 sets of large and medium-size equipment with a series of functions, such as scientific research, design, production, testing, assembly and commissioning. The company has passed the ISO9001:2000 international quality management system certification and enjoys the right of import and export.

Our company's main product is large size paper making machine. The largest paper machine width we produce reaches 6000mm, working speed of 700m/min. The main production lines include packaging paper production lines with an annual output of 20,000-2,000,000 tons, cultural paper production lines with an annual output of 10,000-100,000 tons, tissue paper production lines with an annual output of less than 20,000 tons and various special paper production lines. Our company serves paper making enterprises, including plant design, production process, overall design, equipment processing, installation and debugging, worker training, after-sales service and so on.

With the principle of honest management, fine management and high quality service, our company has developed rapidly in recent years, and has developed a safe operation mode, which makes all kinds of papermaking equipment put into the market of domestic and abroad and received good comments from our customers.
